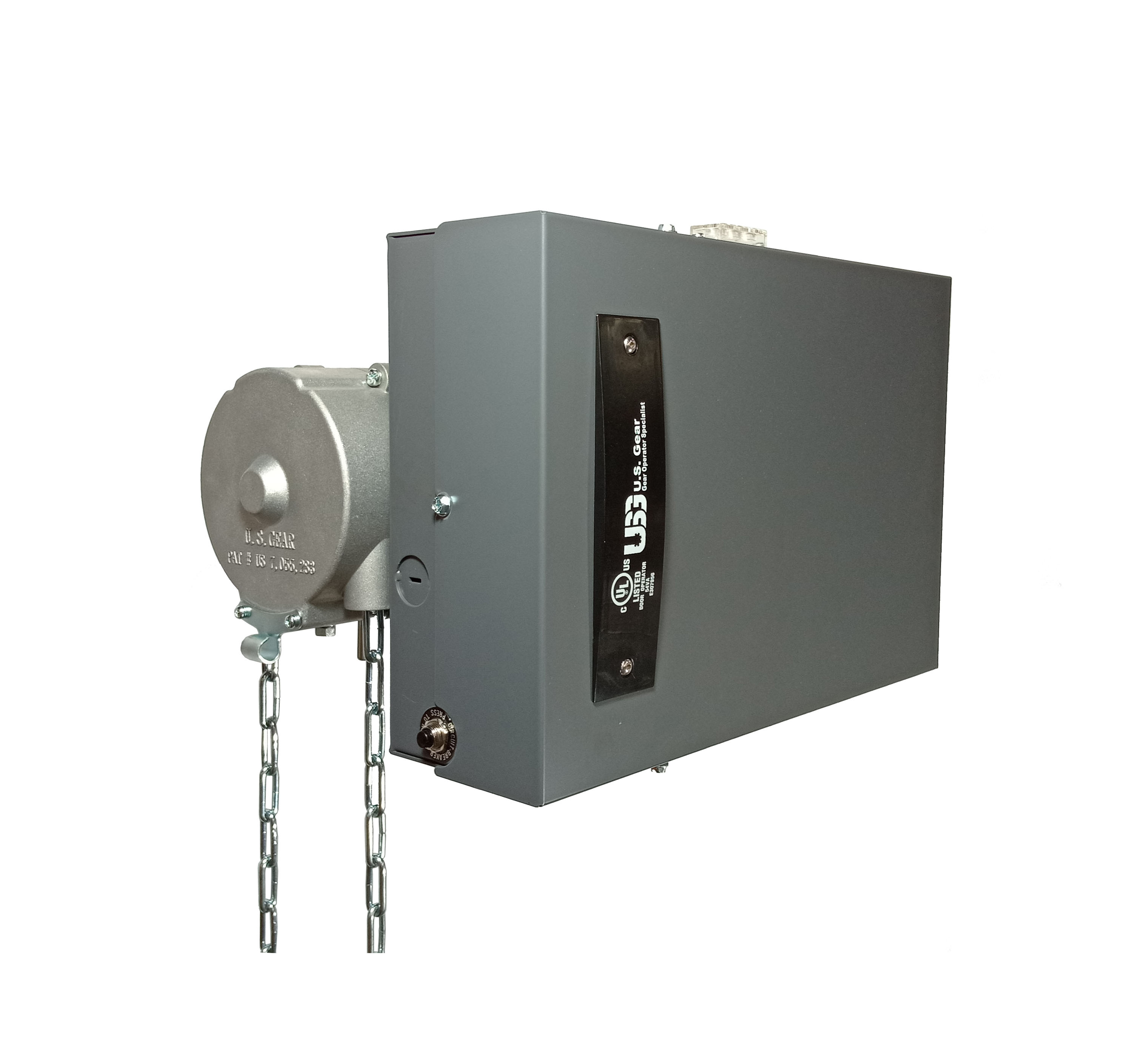

Medium Duty Service Operator

MG Series

UL listed

Available for retrofit

Compact size and ligt weight

Motor mounted interlock available to 1/2HP, unique feature with gear head operators

Auxiliary chain automatically engages and disengages, JustPull® to operate

Auxiliary chain can be easily added or removed from operators in field

Optional carwash modification for application with indirect splash proof

Motor: Medium-duty, high starting torque with overload and thermal protection. Available in 1/3, 1/2 and 3/4 HP (lock sensor type available in 1/3 and 1/2 HP); single-phase capacitor start and three phase motors.

Brake: Maintenance free, solenoid actuated brake. Long lasting solenoid. No adjustment needed for the life of the operator.

Safety Feature: Interlocked with a cut-off switch. Prevent accidents from fast moving chain.

Brake Release: Standard feature on all MG series operators.

Internal Lock Sensor (Optional): Industry first on a gear head. Available to 1/2 HP. Motor mount lock sensor. Adjustable lock sensitivity, tool included. No additional wiring or special installation required.
